OWG200U-R120-14.5GHz
OWG200U-R120-14.5GHz
The OWG200U‑R120‑14.5GHz is a dual‑channel U‑style waveguide rotary joint. Channel 1 covers 14.0–14.5 GHz with R120 flange, peak power 100 W, max insertion loss 0.4 dB. Channel 2 operates DC–2.05 GHz via SMA‑F (50Ω), peak power 10 kW, max insertion loss 0.2 dB. Both feature high isolation (>60dB), low VSWR (≤1.2), and stable rotation. It supports 6
Overview

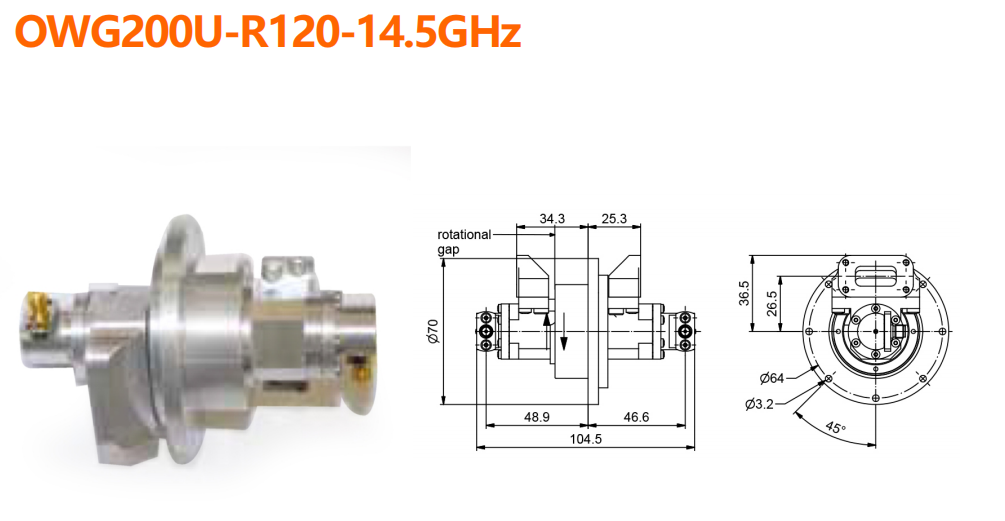

Standard drawings
