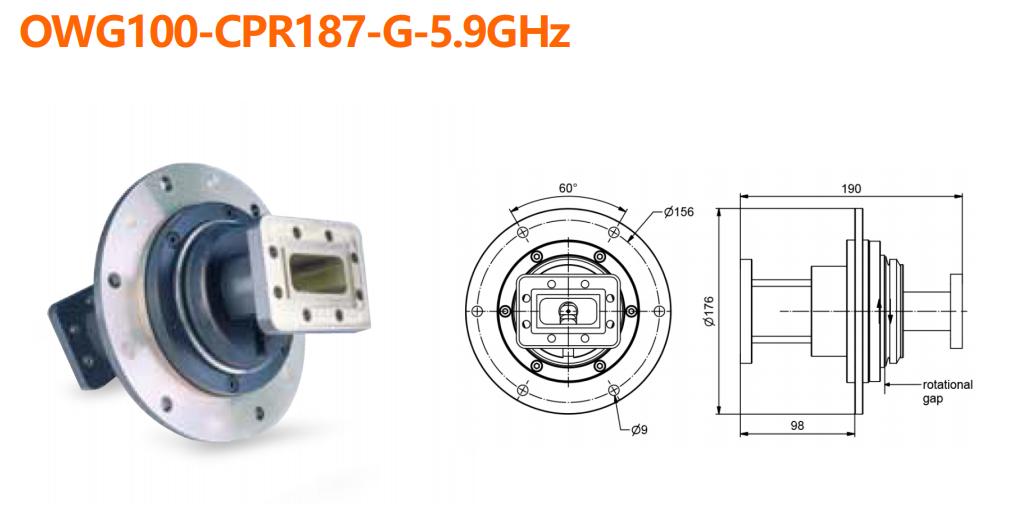

OWG100-CPR187-G-5.9GHz

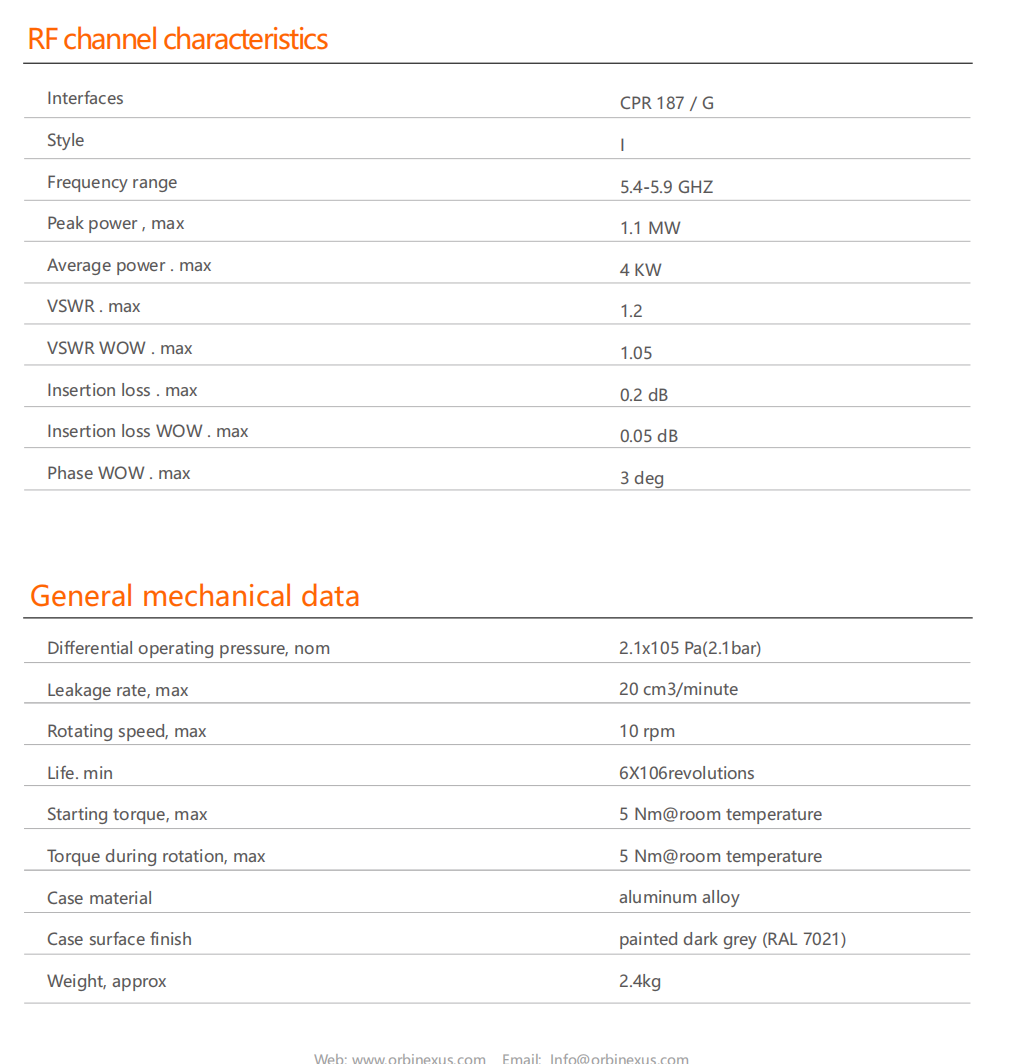

The OWG100-CPR187-G-5.9GHz is an inline waveguide rotary joint operating at 5.4–5.9 GHz, supporting peak power up to 1.1 MW and average power 4 kW. It features low insertion loss (max 0.2 dB), VSWR ≤1.2, and stable rotational performance with controlled WOW variations. Designed for high-power RF applications, it offers a maximum speed of 10 rpm, 6
