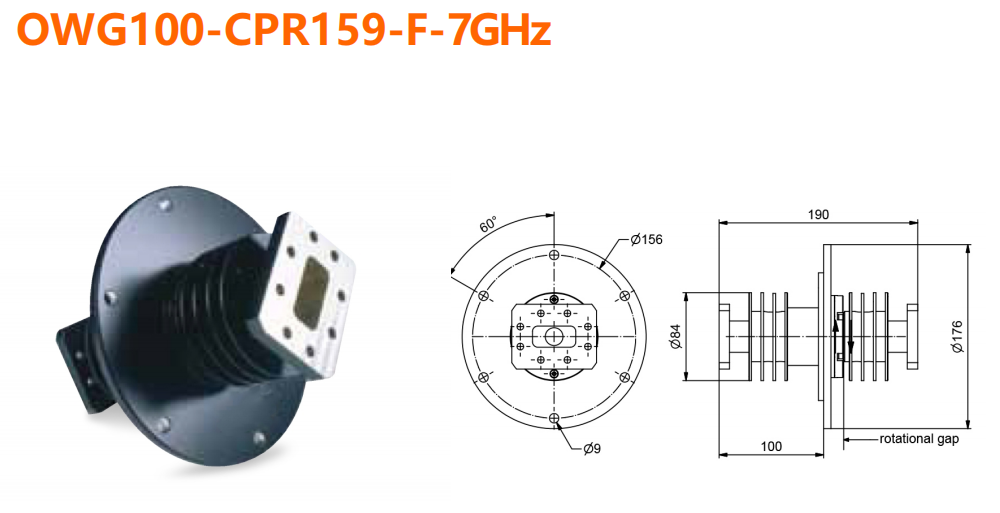

OWG100-CPR159-F-7GHz

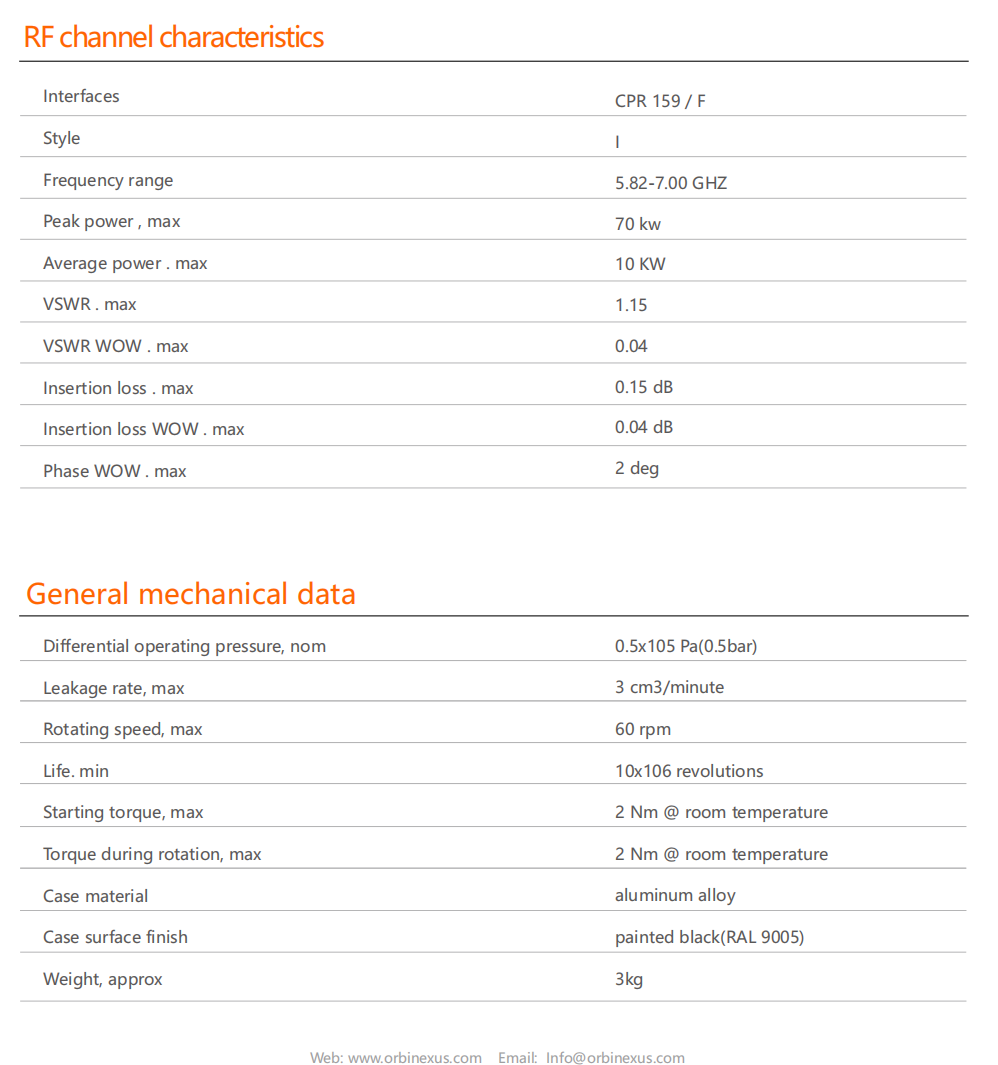

The OWG100-CPR159-F-7GHz is an inline waveguide rotary joint covering 5.82–7.00 GHz, with peak power up to 70 kW and average power 10 kW. It provides low insertion loss (max 0.15 dB), VSWR ≤1.15, and stable rotational performance with low WOW variations. Designed for high‑power RF systems, it supports 60 rpm max speed, 10 million revolutions lifesp
