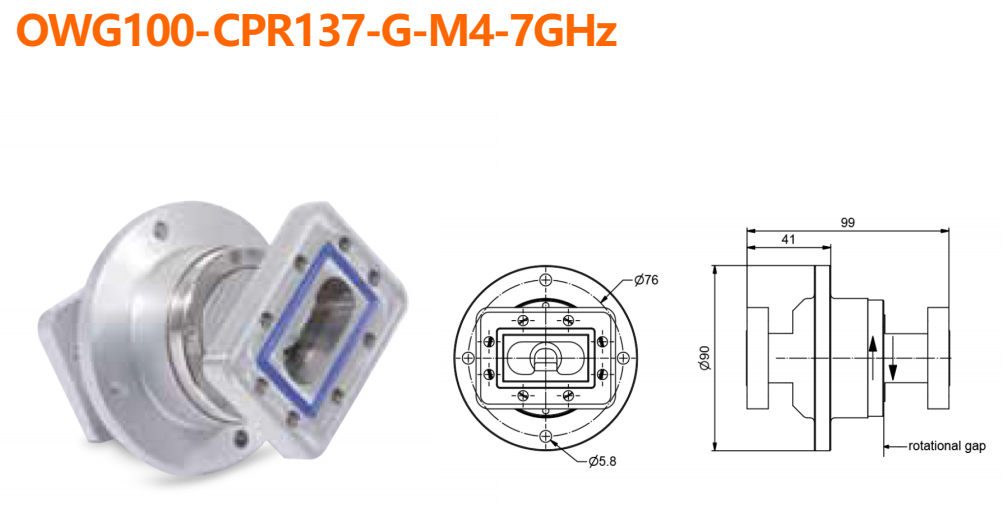

OWG100-CPR137-G-M4-7GHz

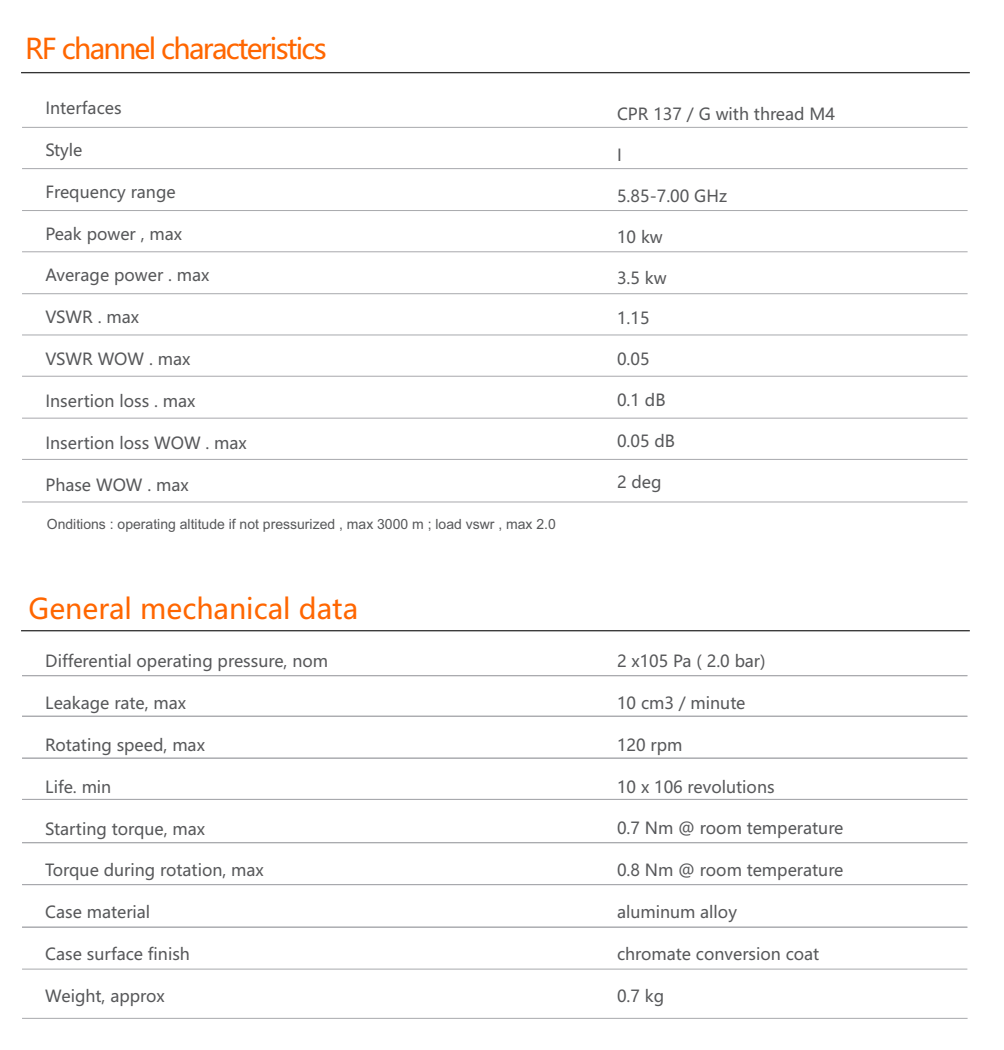

OWG100-CPR137-G-M4-7GHz is an inline-style waveguide rotary joint operating at 5.85–7.00 GHz, supporting peak power up to 10 kW and average power 3.5 kW. It features low insertion loss (max 0.1 dB), VSWR ≤1.15, and stable rotational performance with minimal WOW variations. Designed for radar and communication systems, it offers up to 120 rpm speed,
