OWG100L-UBR120-14.5GHz
OWG100L-UBR120-14.5GHz

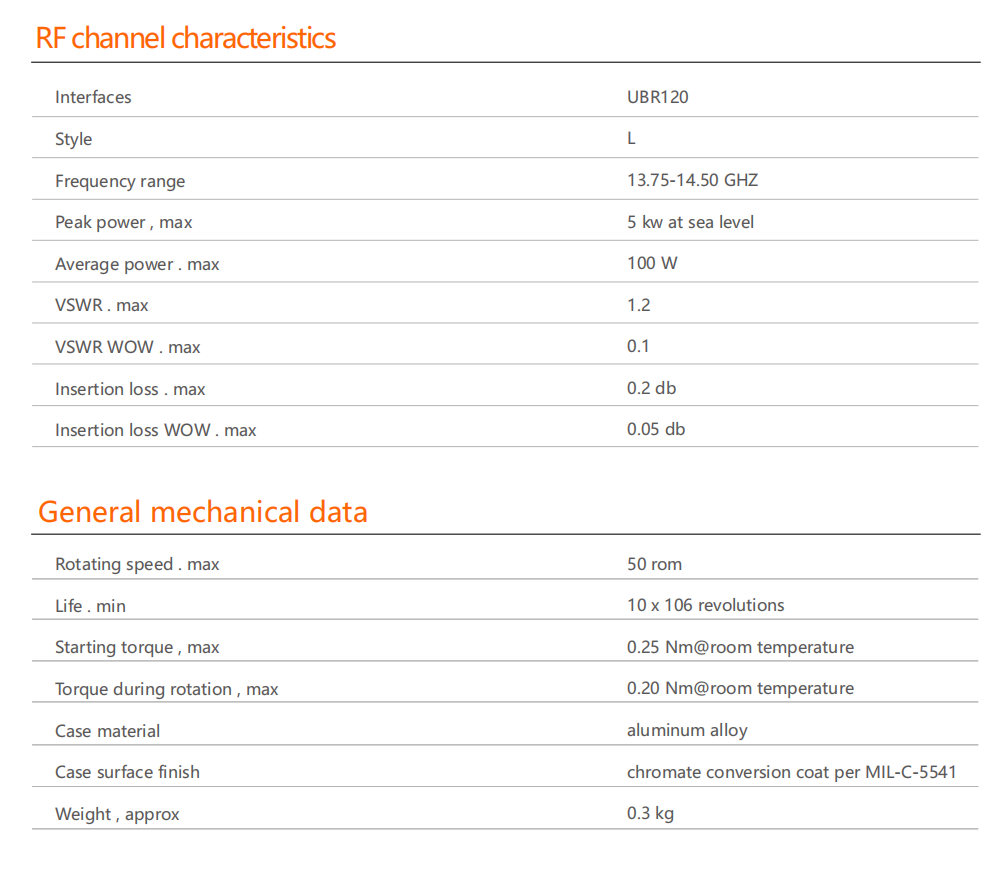

The OWG100L‑UBR120‑14.5GHz is an L‑style waveguide rotary joint designed for 13.75–14.50 GHz. It delivers peak power up to 5 kW (sea level) and average power 100 W, with low insertion loss (max 0.2 dB) and VSWR ≤1.2. It offers stable rotation, up to 50 rpm speed, 10‑million‑revolution lifespan, and IP41 protection. Operating from −40 °C to +70 °C,
Overview

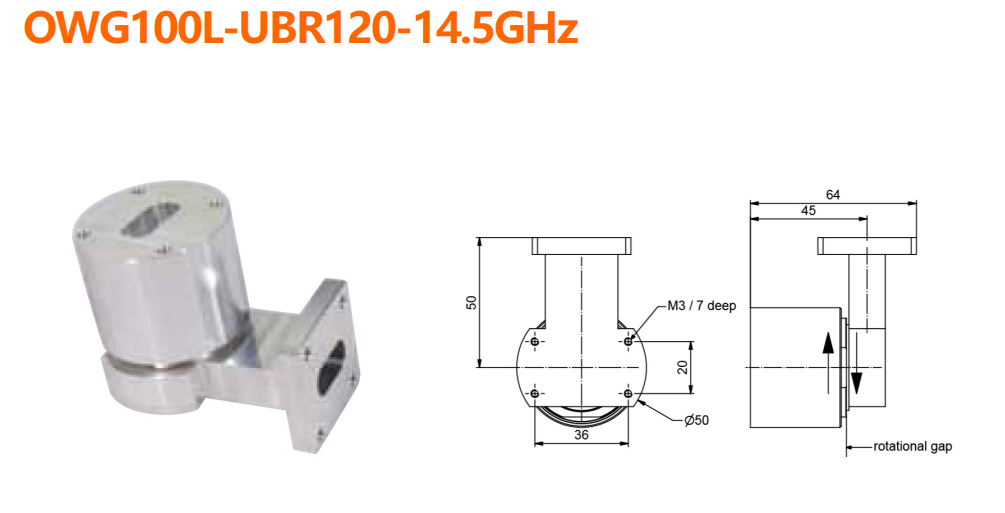

Standard drawings
