OWG100-CPR430-G-2.125GHz
OWG100-CPR430-G-2.125GHz

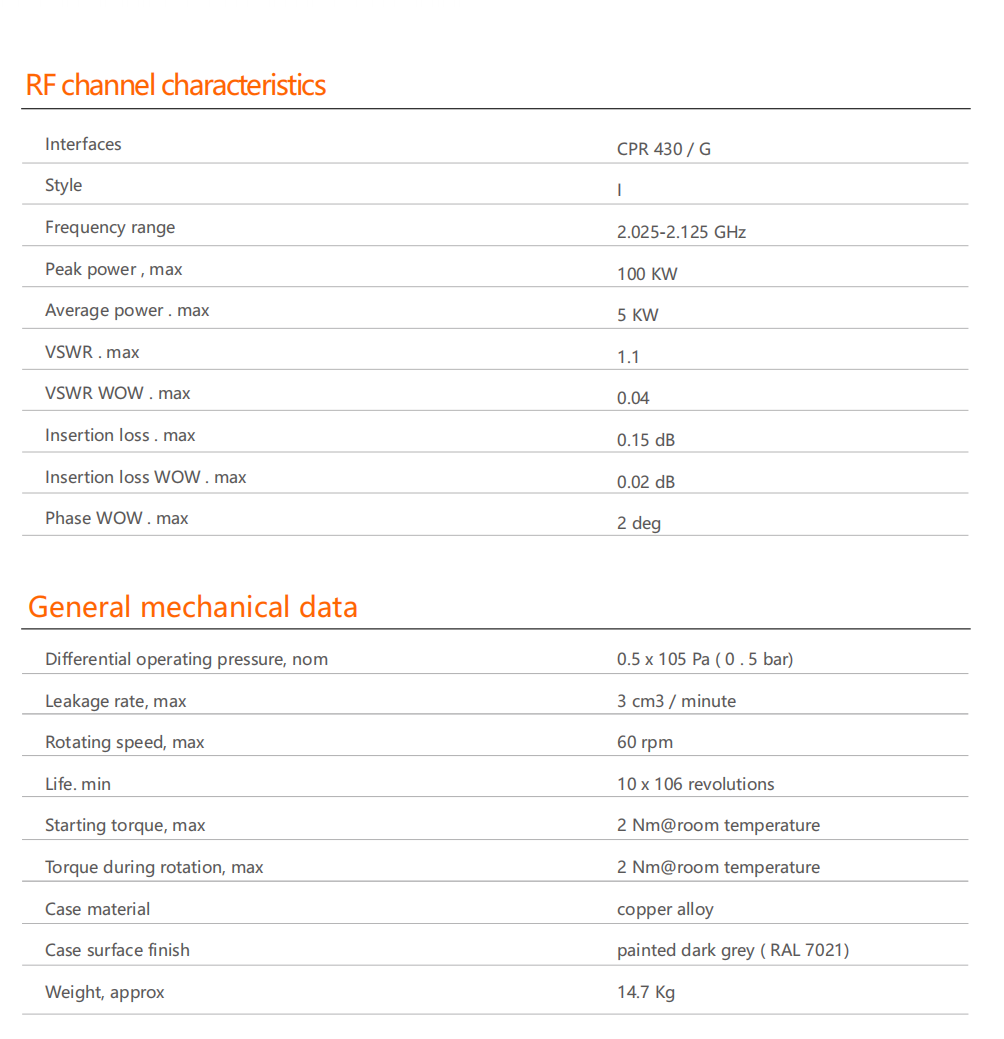

The OWG100‑CPR430‑G‑2.125GHz is an inline waveguide rotary joint covering 2.025–2.125 GHz, with peak power up to 100 kW and average power 5 kW. It delivers low insertion loss (max 0.15 dB), excellent VSWR ≤1.1, and low WOW variations. It supports up to 60 rpm, 10‑million‑revolution lifespan, IP65 rating, and operates from −40 °C to +55 °C. Housed i
Overview

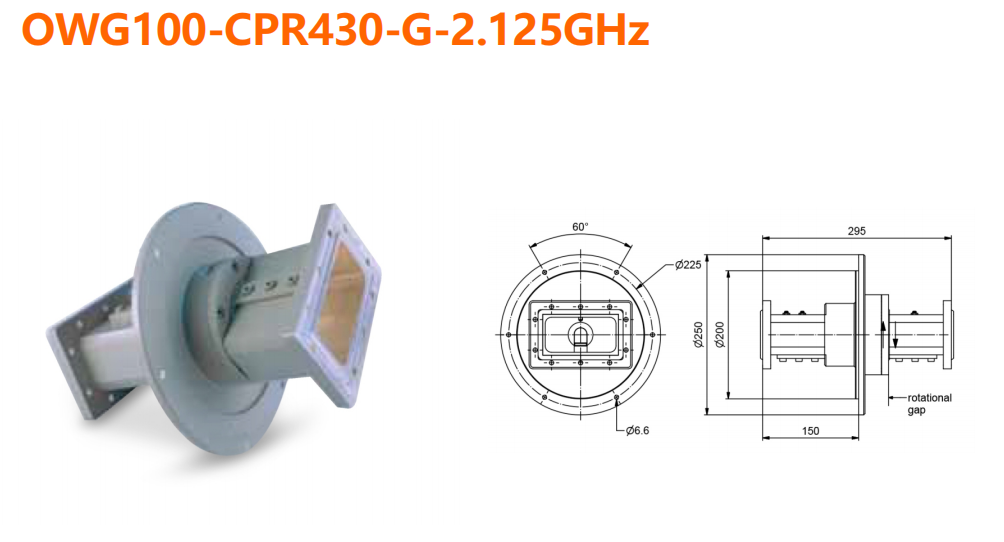

Standard drawings
