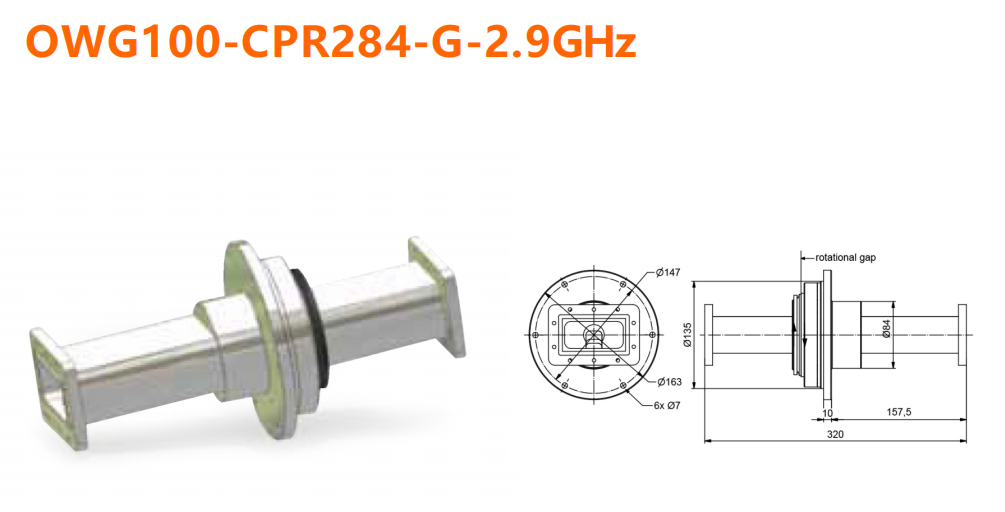

OWG100-CPR284-G-2.9GHz

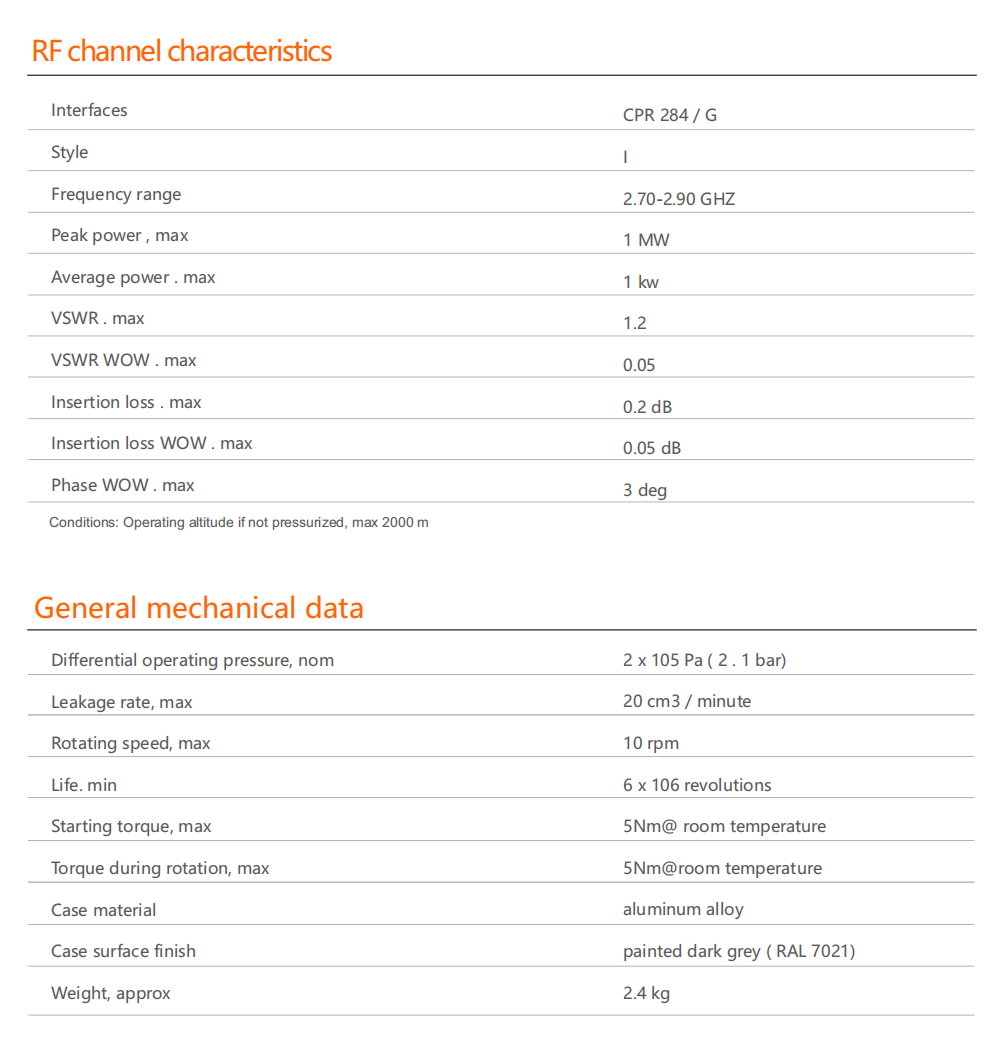

The OWG100‑CPR284‑G‑2.9GHz is an inline waveguide rotary joint for 2.70–2.90 GHz, with peak power up to 1 MW and average power 1 kW. It features low insertion loss (max 0.2 dB), VSWR ≤1.2, and stable rotational performance. It supports up to 10 rpm, 6‑million‑revolution lifespan, IP65 rating, and operates at 0–55 °C. Housed in dark grey painted alu
