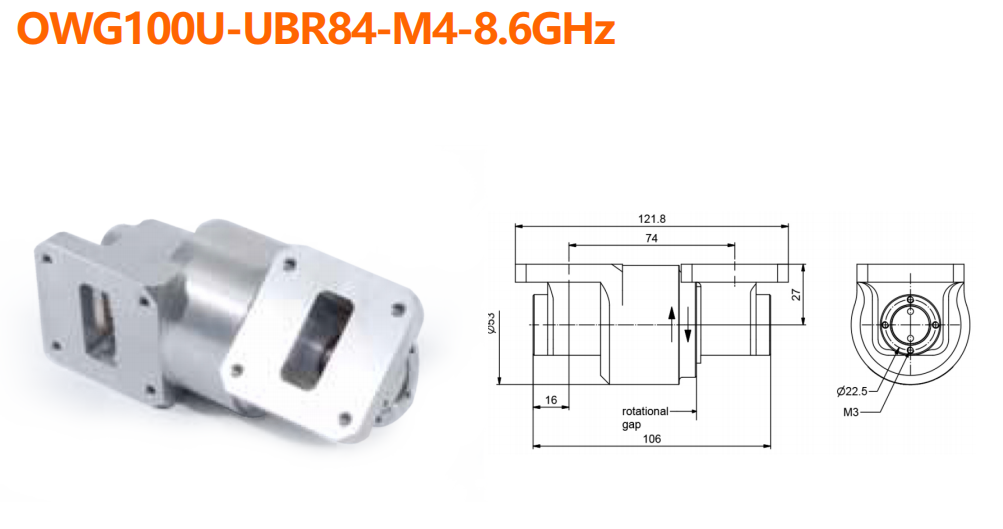

OWG100U-UBR84-M4-8.6GHz

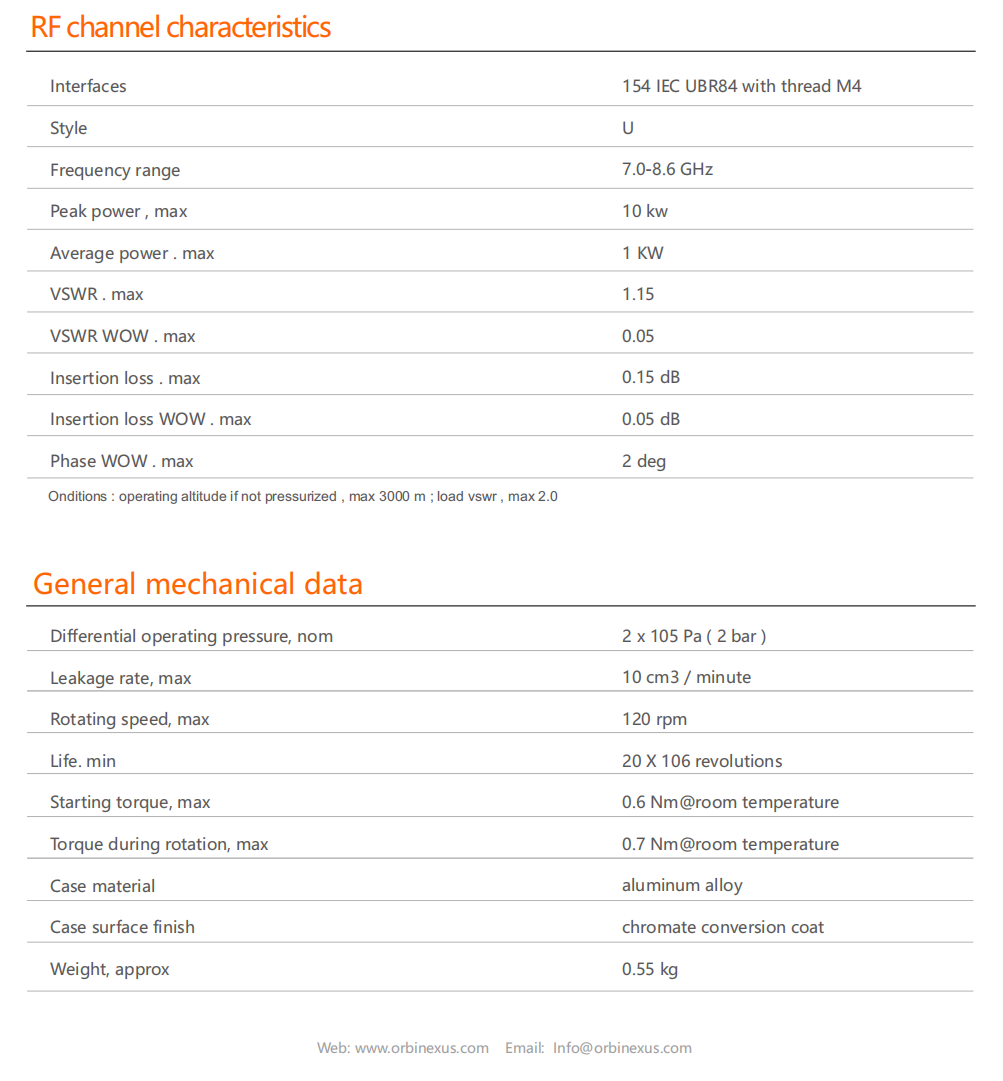

The OWG100U‑UBR84‑M4‑8.6GHz is a U‑style waveguide rotary joint operating at 7.0–8.6 GHz, with peak power up to 10 kW and average power 1 kW. It features low insertion loss (max 0.15 dB), VSWR ≤1.15, and stable rotational performance. It supports up to 120 rpm, 20‑million‑revolution lifespan, IP65 protection, and operates from −40 °C to +70 °C. Hou
