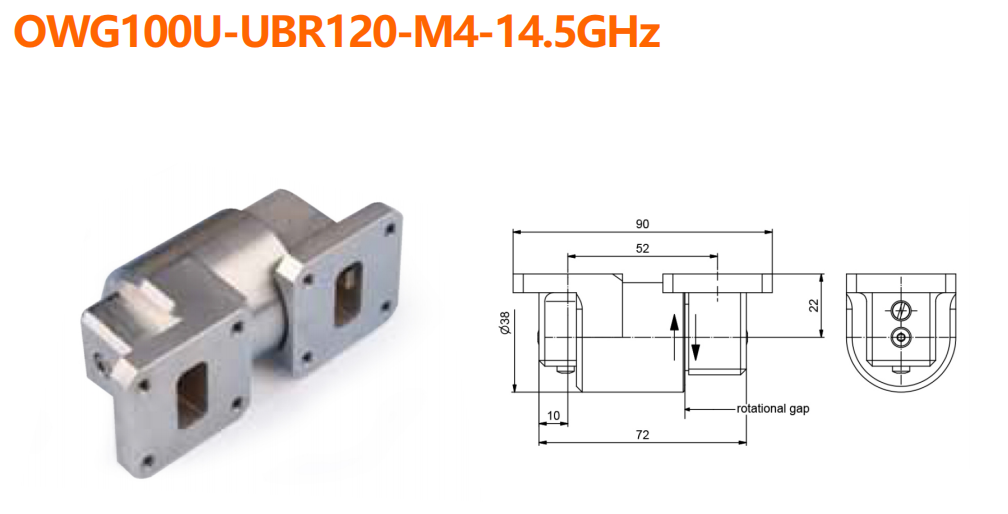

OWG100U-UBR120-M4-14.5GHz

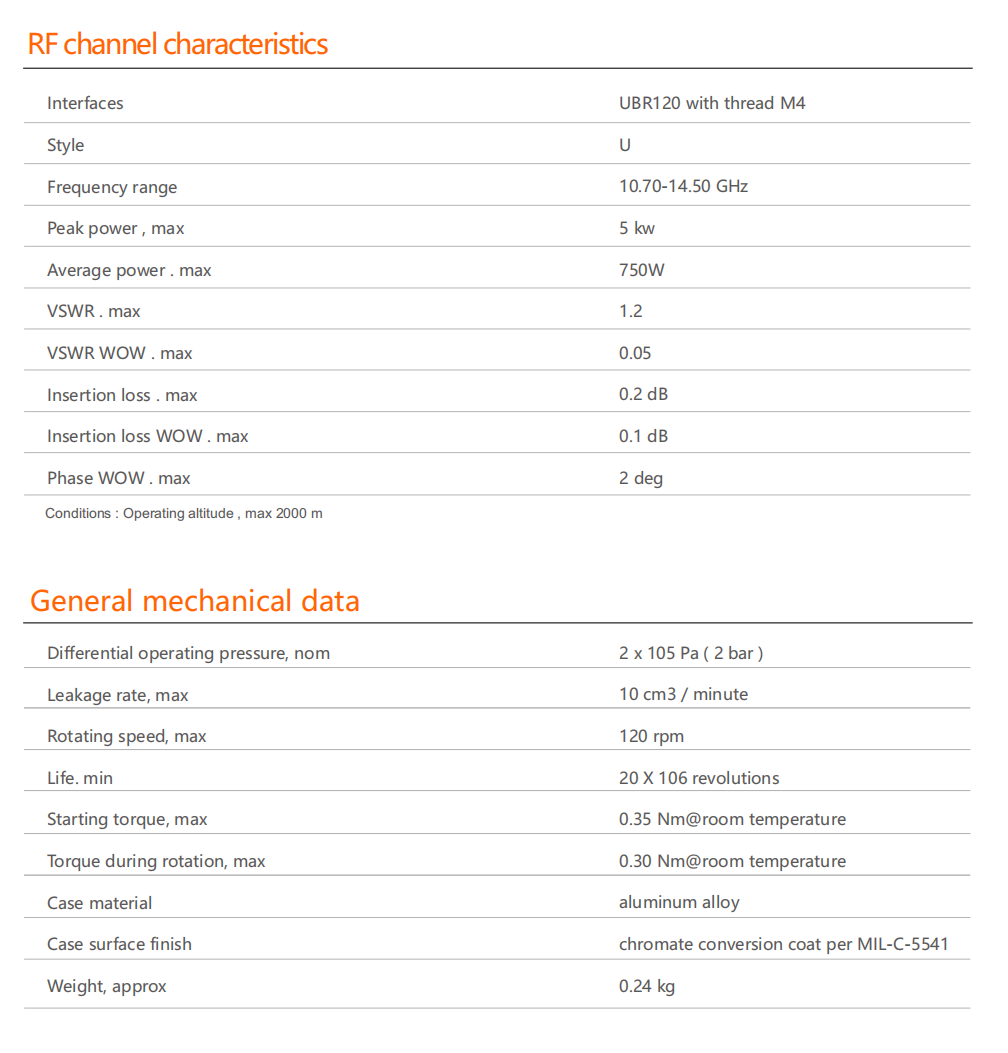

The OWG100U‑UBR120‑M4‑14.5GHz is a U‑style waveguide rotary joint for 10.70–14.50 GHz, with peak power up to 5 kW and average power 750 W. It offers low insertion loss (max 0.2 dB), VSWR ≤1.2, and stable rotational performance. It supports up to 120 rpm, 20‑million‑revolution lifespan, IP65 rating, and operates from −40 °C to +70 °C. Housed in MIL‑
