LK3305 Series
LK3305 Series

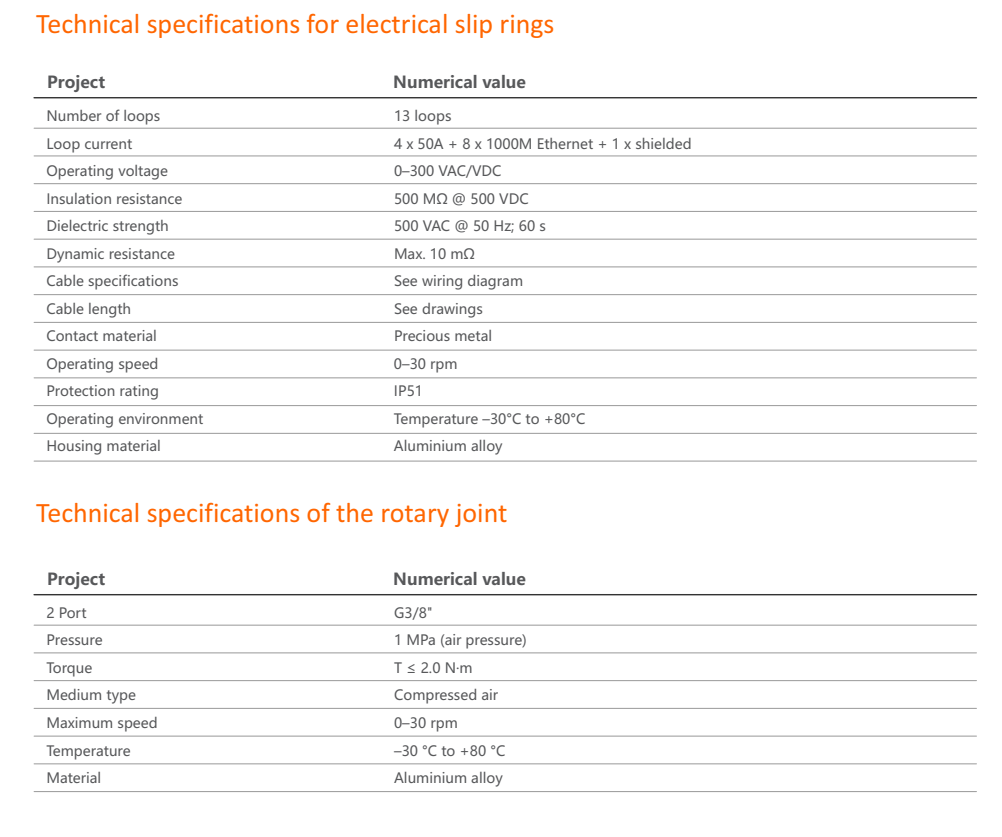

LK3305 SERIES is a combined pneumatic-electric slip ring integrating 13 electrical circuits and 2 G3/8 pneumatic ports, equipped with 4×50A power channels, 8×1000M Ethernet plus 1 shielded signal line. Constructed from aluminum alloy with IP51 rating, it runs at 0~30rpm reliably within -30℃~+80℃.
Overview

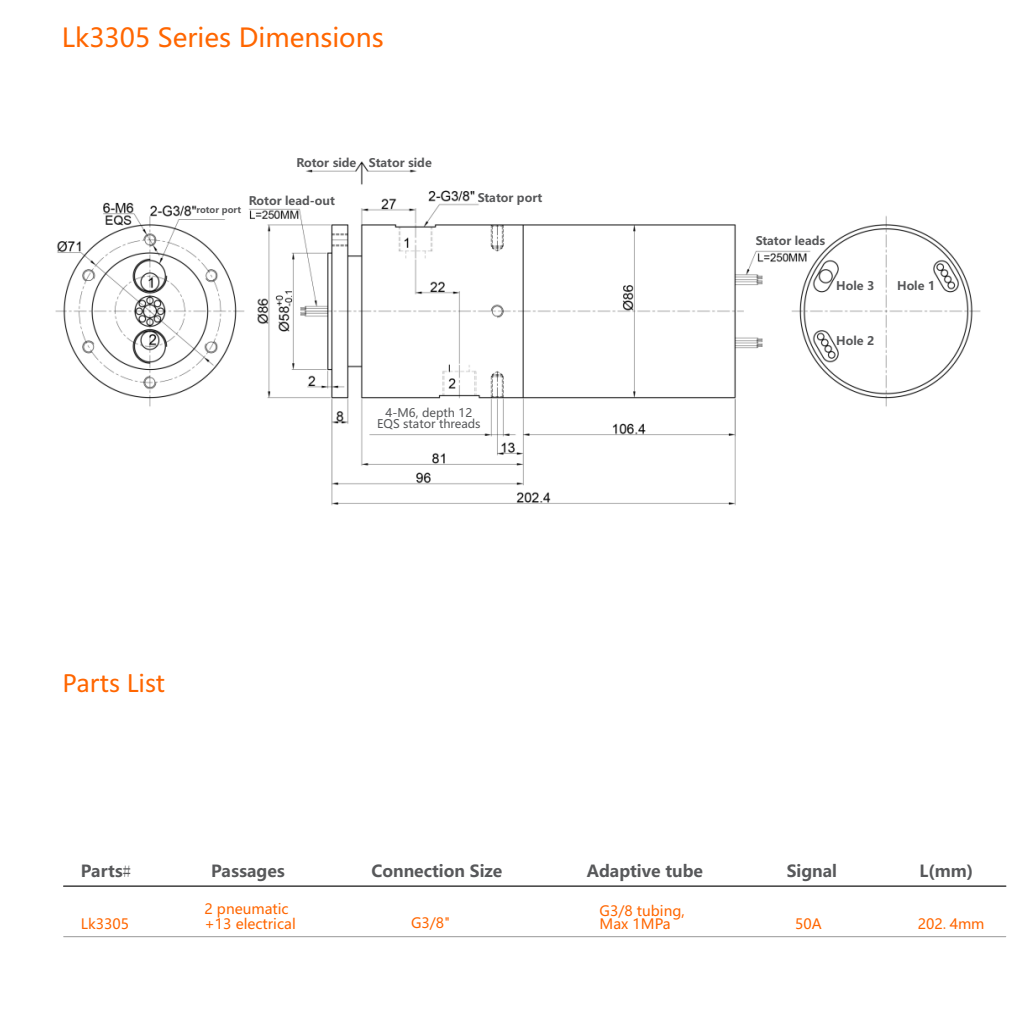

Standard drawings
Related Products
![16_{I6AF$G)$5L$$B]0_JG6.png](https://www.orbinexus.com/data/upload/ueditor/20260609/16_{I6AF$G)$5L$$B]0_JG6.png "16_{I6AF$G)$5L$$B]0_JG6.png")
